SomoGear Raptar-S Rangefinder

The SomoGear RAPTAR-S

is a rangefinder unit with an integrated IR laser and IR illuminator.
Note: This model does not feature an applied ballistics solver, designed for airsoft use.

Key Features:

• Multiple Functions: Co-aligned Visible laser, IR laser & IR illuminator (VCSEL)
• Laser Rangefinder (LRF) dot CAN NOT adjustable

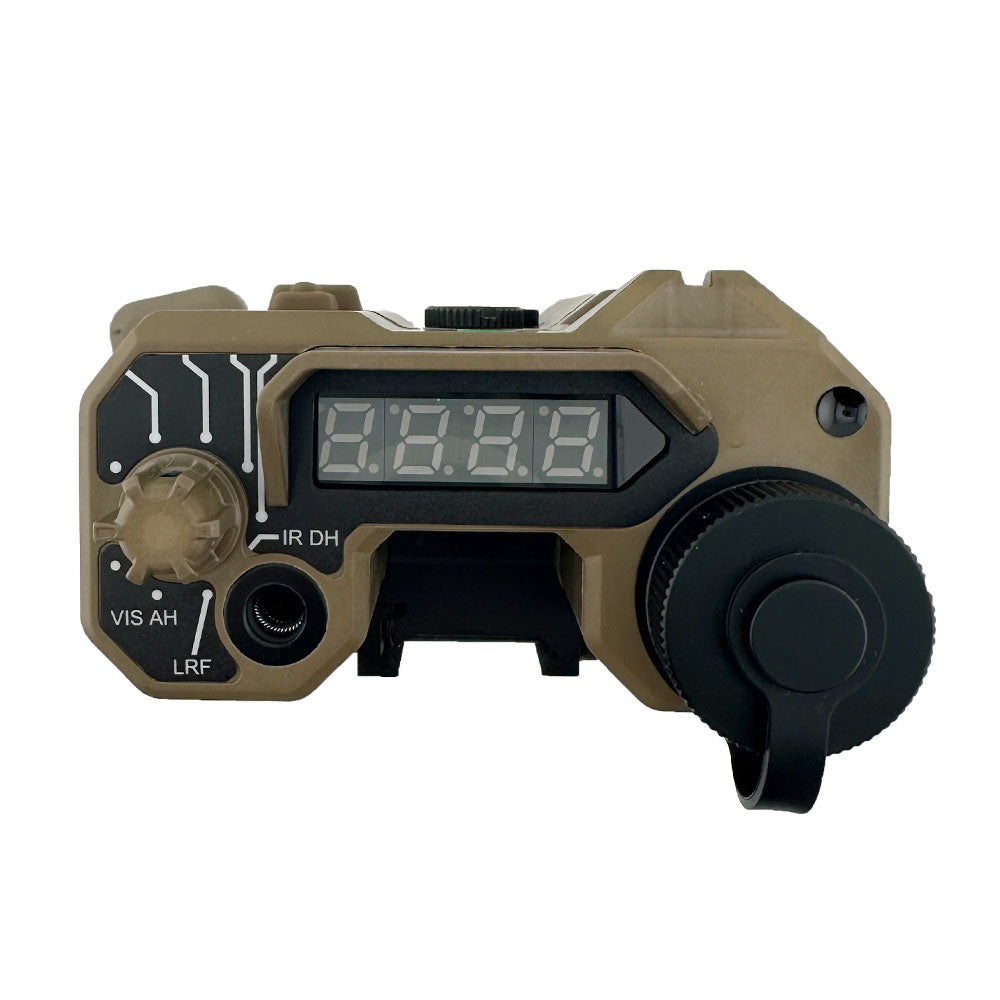

• Distance Display: LED segment screen shows range data in meters
• Measurement Range: 5 to 999 meters
• With Pulse Rates Programming Function
• IR Illuminator Beam: CAN NOT adjust the beam, it is Fixed angle of 5.73°, (At 30 meters, beam diameter is approximately Ø3.0 meters)

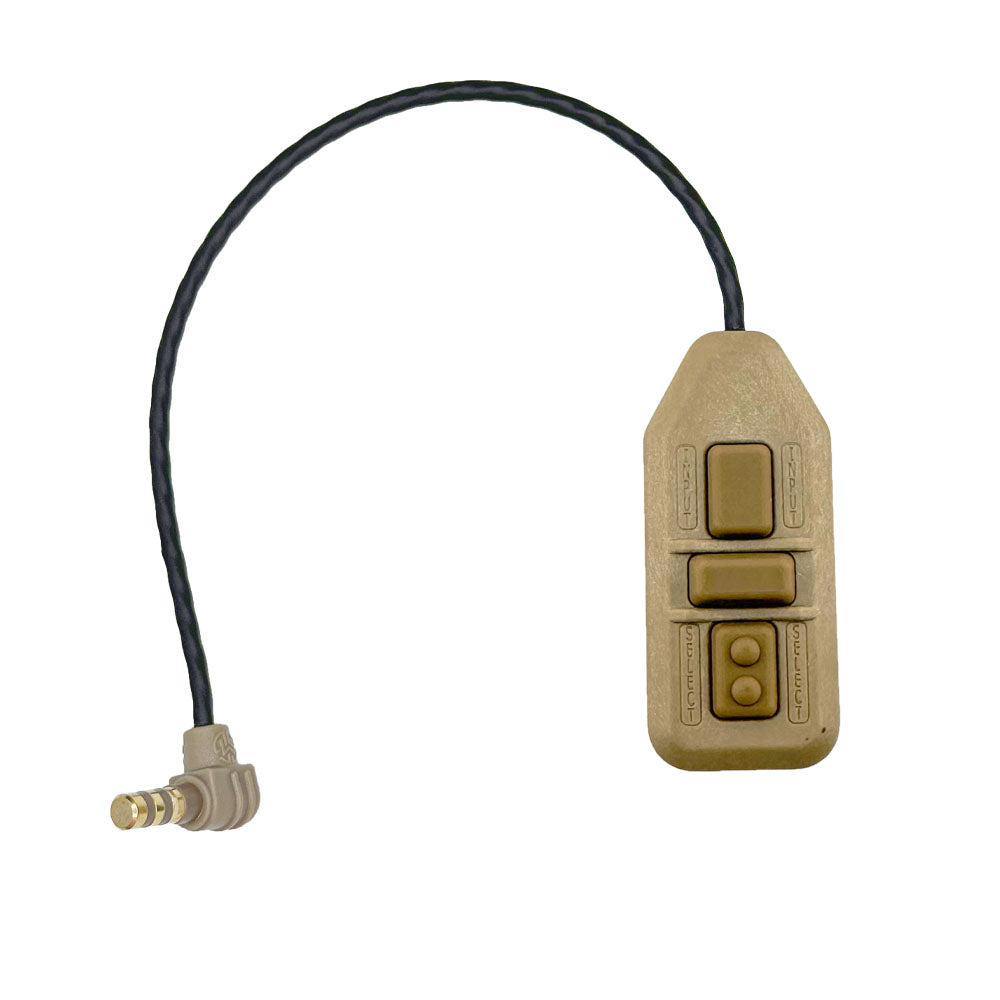

• Remote Keypad Switch: Same button layout as the main unit for intuitive control
• Remote Cable Length: 14 inches
• High Strength Polymer + Floating Fiber Housing
• Fits for Picatinny Rail MIL-STD-1913  (.835″)
• Battery: 1 x 3V CR123A (not include)
• Battery Life: >6 Hours
• This product is NOT waterproof
• Weight: 322 g / 11.35 oz

How to use the rangefinder function:

1. Turn the dial to the LARF mode.
2. Press the flat button to activate the red aiming dot (you can press either the remote switch or the main unit button).
3. Press the flat button again to display the distance.

WARNING:

• Do not stare into the laser beams
• Do not look into the laser beams through binoculars or telescopes
• Do not point the lasers beams at mirror-like surfaces
• Do not shine the laser beams into other individuals’ eyes
• Always wear eye protection
