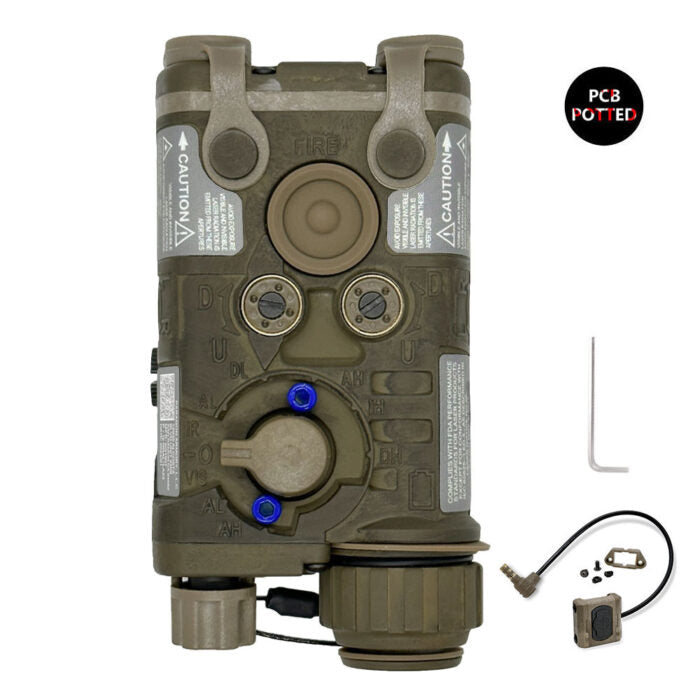

SomoGear NGAL/LA23 IR Laser + IR Illuminator with Potted PCB

Laser color


Paragon Armory is the official distributor of Somogear products. We offer 6 months after sales support through Paragon where any manufacturer defect is covered. Please reach out to Paragon Armory directly via email with any concerns on your unit.

Lead times and potting

These units are potted. Potted products are produced in batches and are made to order. We aim to carry stock of all products however in the event that parts aren't in stock please allow approximately 14 - 21 business days after the point of ordering before your items ship. For lead time estimates prior to ordering please contact us via the contact page

The replica SomoGear NGAL Aiming Laser Airsoft Gear is a rugged, ultra-compact and lightweight system, designed to be compatible with all generations of night vision devices.

  • Brand: SOMOGEAR
  • Fits for Picatinny Rail MIL-STD-1913
  • CNC 6063 aircraft aluminum housing with tan color painting
  • Compatible with LA23 plug
  • Zeroable aiming laser (When mounting on the rail, don’t over torque the mount screw, or else it may losing zero)
  • If you need to activate the Vis-Override function, you need to purchase the SomoBoat switch separately.
  • Embossed Fonts Marking
  • Co-aligned visible and infrared lasers (at 30 meters distance they are less than 10cm apart)
  • Focusable IR Illuminator
  • Rotating IR illuminator Focus Ring 288° degrees from spot to flood
  • IR illuminator max flood range: ∠5.73° (at 30m distance, the max flood beam diameter ≈ Ø3.0 meter)
  • Power levels adjustable based on airsofter requirements (locked blue screw is eye-safe mode, unlock the blue screw not eye-safe, Do not shoot directly to the eyes, take care when use this mode)
  • Do not shoot directly to night vision, take care when use high power mode
  • All the lens cover just an opaque cover, without diffuser function.
  • Battery Life: >6 Hours
  • Use 3V CR123A New battery, and pay attention to the positive and negative directions of the batteries
  • 100% Brand New, For Airsoft use only, can’t hold on firearm!!!
  • Ships from USA

***Because of the different monitor’s color, brightness, the pictures and objects will be slightly different.***

Dimensions:  3.6” L x 2.0” W x 1.25”
Weight: 4.8 oz (172g). without battery
Battery: 3V CR123A (not include)

Visible Aim Laser
Output Power Low: ≤4.9mW
Output Power High: ≤20mW

IR Aim Laser
Output Power Low: ≤0.9mW
Output Power High: ≤20mW

IR Illuminator
Output Power Low: ≤8mW
Output Power High: ≤20mW


Configuration & Functions:

  • Tan Housing
  • Visible Laser (Green / Red)
  • IR Illuminator
  • IR Laser
  • Co-aligned VIS & IR Laser

Package Include:
1 x NGAL/LA23 Aiming Laser Device
1 x LA23 Plug Switch

NOT include the battery (due to airmail restricted)

SomoGear / Paragon Armory reserves the right to change the NGAL Airsoft Toy product specifications at any time without notice.
